Each button on the calculator is an instance of this class. More...

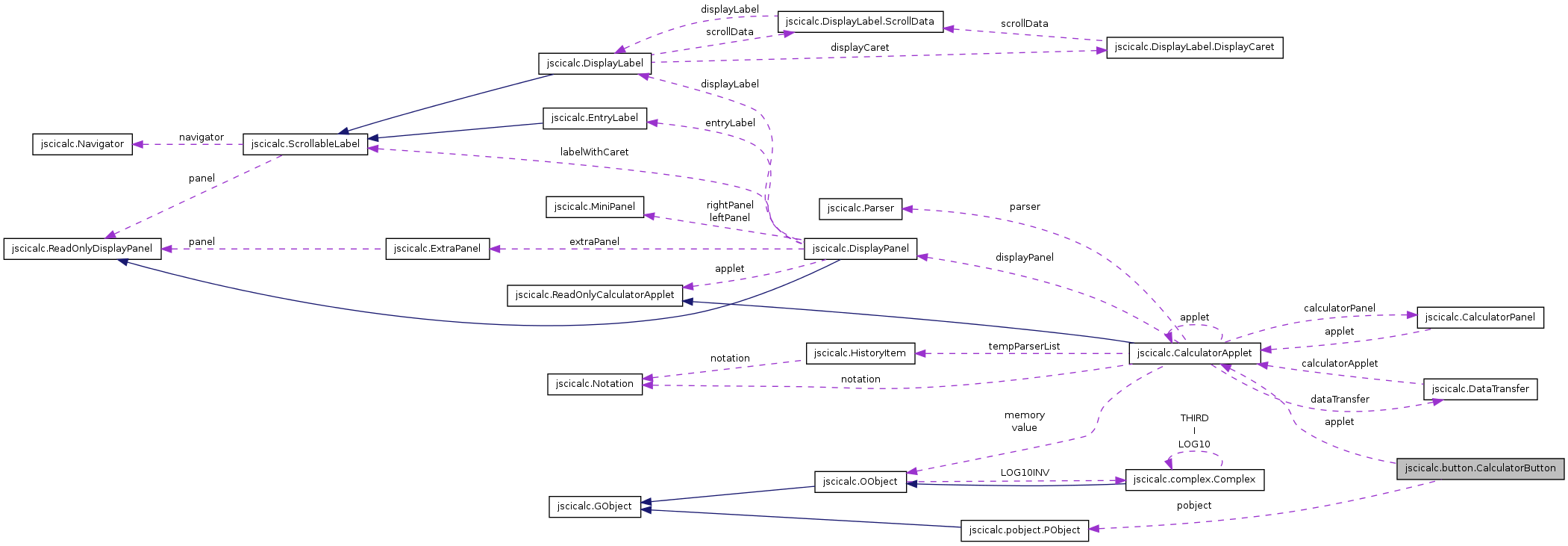

Collaboration diagram for jscicalc.button.CalculatorButton:

Public Member Functions
void	setPObject (PObject p)
	If we didn’t set a PObject initially, we do so now.
void	setToolTipText ()
	Set the text for the tooltip.
	CalculatorButton (CalculatorApplet applet)
	Another constructor.
	CalculatorButton (CalculatorApplet applet, PObject pobject)
	This is the constructor that we normally use.
void	setText ()
	Set the text.
void	setTextSize ()
	When a button is constructed it needs a fontsize consisten with all other buttons.
void	setAngleType (AngleType angleType)
	The PObject objects of class Trig need to know the AngleType currently in use by the CalculatorApplet.
void	actionPerformed (java.awt.event.ActionEvent actionEvent)
	This is the default actionPerformed.
char	shortcut ()
	A shortcut key character.
String	tooltip ()
	Get a copy of the tooltip.
Protected Member Functions
	CalculatorButton ()
	A constructor with no arguments lets us derive subclasses without having to undo everything done here.
void	setText (PObject p)
	Set the text from a PObject.
CalculatorApplet	getApplet ()
	Convenient for getting the controller object.
void	add (PObject p)
	Used internally when asking the applet to insert a PObject.
Protected Attributes
CalculatorApplet	applet
	The controller object.
PObject	pobject
	The PObject that defines the behaviour of this object.
char	shortcut
	The shortcut key (0 means no shortcut key).
String	tooltip
	The tooltip string.
Private Member Functions
void	setup (CalculatorApplet applet, PObject pobject)
	A setup function.
Static Private Attributes
static final long	serialVersionUID = 1L

Detailed Description

Each button on the calculator is an instance of this class.

Each button contains two important pieces of information. It knows about a PObject object. This object usually contains the information necessary for some calculator function such as plus, log or even a Numeral that needs to be stored in an expression. There are a few exceptions, such as the Mode and Shift buttons, where information needs to be sent to the CalculatorApplet object, but does not form part of an expression that the Parser object will evaluate. Generally, buttons that do more than create part of an expression use a subclass of this. The second piece of information that an object of this class needs is the CalculatorApplet object. Buttons don’t deal directly with the Parser object but rather request that the CalculatorApplet object do this for them.

Buttons are made available to the user through CalculatorPanel and its subclasses.

See also:: CalculatorApplet; PObject; Parser; CalculatorPanel

Author:: J. D. Lamb

Version:

Revision:: 1.7

Constructor & Destructor Documentation

jscicalc.button.CalculatorButton.CalculatorButton ( ) [protected]

A constructor with no arguments lets us derive subclasses without having to undo everything done here.

jscicalc.button.CalculatorButton.CalculatorButton ( CalculatorApplet applet )

Another constructor.

This one is useful for subclasses and so could probably be protected. It’s also used to create empty buttons, though CalculatorPanel could be rewritten just to pass null as the PObject and call the standard constructor.

Parameters:

applet

The controller object

References jscicalc.button.CalculatorButton.setup().

jscicalc.button.CalculatorButton.CalculatorButton	(	CalculatorApplet	applet,
		PObject	pobject
	)

This is the constructor that we normally use.

The remaining constructors should probably all be protected since they are designed to be used by subclasses.

Parameters:

	applet	The controller object
	pobject	The PObject object that tells the button how to look and behave

References jscicalc.button.CalculatorButton.setup().

Member Function Documentation

void jscicalc.button.CalculatorButton.actionPerformed ( java.awt.event.ActionEvent actionEvent )

This is the default actionPerformed.

It checks that the calculator is switched on and then carries out the action associated with this button depending on the state of the CalculatorApplet object. Typically it just asks the CalculatorApplet object to add its PObject to the Parser object at the current insert position and then update the display.

Parameters:

actionEvent

The event that generated this method call: usually a button press or called when CalculatorApplet responded to the key associated with this button

References jscicalc.button.CalculatorButton.add(), jscicalc.button.CalculatorButton.applet, jscicalc.CalculatorApplet.getAngleType(), jscicalc.button.CalculatorButton.getApplet(), jscicalc.CalculatorApplet.getMode(), jscicalc.button.CalculatorButton.pobject, jscicalc.button.CalculatorButton.setAngleType(), jscicalc.CalculatorApplet.setMode(), jscicalc.CalculatorApplet.setShift(), jscicalc.pobject.PObject.shortcut(), and jscicalc.CalculatorApplet.updateDisplay().

Referenced by jscicalc.CalculatorApplet.keyTyped().

void jscicalc.button.CalculatorButton.add ( PObject p ) [protected]

Used internally when asking the applet to insert a PObject.

In some cases we want to add an extra Ans object and this method handles this case.

Parameters:

p

The PObject: since it should always be this.pobject the parameter should probably be removed

References jscicalc.button.CalculatorButton.getApplet(), jscicalc.CalculatorApplet.getValue(), jscicalc.CalculatorApplet.insert(), jscicalc.pobject.Ans.setValue(), and jscicalc.CalculatorApplet.updateDisplay().

Referenced by jscicalc.button.RCLButton.actionPerformed(), jscicalc.button.CalculatorButton.actionPerformed(), and jscicalc.button.AnsButton.actionPerformed().

CalculatorApplet jscicalc.button.CalculatorButton.getApplet ( ) [protected]

Convenient for getting the controller object.

References jscicalc.button.CalculatorButton.applet.

void jscicalc.button.CalculatorButton.setAngleType ( AngleType angleType )

The PObject objects of class Trig need to know the AngleType currently in use by the CalculatorApplet.

This method allows us to set the value. Probably it should not have a parameter but ask the CalculatorApplet for a value.

Parameters:

angleType

AngleType.DEGREES or AngleType.RADIANS

References jscicalc.button.CalculatorButton.pobject.

Referenced by jscicalc.button.CalculatorButton.actionPerformed().

void jscicalc.button.CalculatorButton.setPObject ( PObject p )

If we didn’t set a PObject initially, we do so now.

Parameters:

p

The PObject object that tells the button how to look and behave

References jscicalc.button.CalculatorButton.pobject, jscicalc.button.CalculatorButton.setText(), jscicalc.button.CalculatorButton.setToolTipText(), jscicalc.pobject.PObject.shortcut(), jscicalc.button.CalculatorButton.shortcut(), jscicalc.pobject.PObject.tooltip(), and jscicalc.button.CalculatorButton.tooltip().

Referenced by jscicalc.button.CalculatorButton.setup().

void jscicalc.button.CalculatorButton.setText ( )

Set the text.

Again we use the PObject.

References jscicalc.button.CalculatorButton.pobject.

void jscicalc.button.CalculatorButton.setText ( PObject p ) [protected]

Set the text from a PObject.

This allows us to override the PObject in this class, though I don’t think we ever do. It uses PObject.shortName() to create some text that appears on the button and then wraps in in HTML tags. This is useful so that, for example, the squared button has the 2 in the position.

Parameters:

p

A PObject: usually this.pobject.

References jscicalc.button.CalculatorButton.setText(), and jscicalc.pobject.PObject.shortName().

void jscicalc.button.CalculatorButton.setTextSize ( )

When a button is constructed it needs a fontsize consisten with all other buttons.

This method gets the correct font from the controller CalculatorApplet object.

References jscicalc.button.CalculatorButton.getApplet().

void jscicalc.button.CalculatorButton.setToolTipText ( )

Set the text for the tooltip.

This is extracted from the PObject byt taking the PObject.tooltip() function, adding the PObject.shortcut key in square brackets and wrapping everything in HTML.
