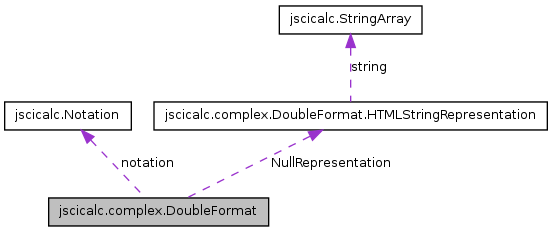

Collaboration diagram for jscicalc.complex.DoubleFormat:

Classes
class	HTMLStringRepresentation
	Inner class used to represent HTML string representations of doubles. More...
Public Member Functions
	DoubleFormat (double number, Base base)
	Constructor.
void	setPrecision (int precision)
	Set the precision.
void	setBase (final Base base)
	Set the base.
void	setNotation (Notation notation)
	Set the notation.
HTMLStringRepresentation	representation ()
	Produce a string representing the number in current Notation and precision.
HTMLStringRepresentation	scientific ()
	Produce a string representing the number using scientific notation.
double	getNumber ()
	Get method for finding the number stored in this object.
double	getAbsNumber ()
	Get method for finding the absolute value of the number stored in this object.
String	getEString ()
	Exponents are represented as superscripts with a prefix, which may depend on the Base.
int	getEStringLength ()
	Exponents are represented as superscripts with a prefix, which may depend on the Base.
Static Public Member Functions
static int	midDigit (Base base)
	This is used during rounding.
static int	baseInt (Base base)
	This is used during rounding.
static void	main (String[] args)
	Standard test function.
Public Attributes
final HTMLStringRepresentation	NullRepresentation
	This is used to assign HTMLStringRepresentation objects to a null value.
Static Public Attributes
static final long	BIAS = 1023
	Standard constant for IEEE 754 doubles.
static final long	E_MAX = 1023
	Standard constant for IEEE 754 doubles.
static final long	E_MIN = -1022
	Standard constant for IEEE 754 doubles.
static final java.util.Vector < String >	basePoint = new java.util.Vector<String>( java.util.Arrays.asList( "." ) )
	This is how we represent a base point in output strings.
static final String	startExponent = "<sup style=\"font-size:60%;\">"
	This is how we represent the start of an exponent in output strings.
static final String	endExponent = "</sup>"
	This is how we represent the end of an exponent in output strings.
static final java.util.Vector < String >	minus = new java.util.Vector<String>( java.util.Arrays.asList( "−" ) )
	This is how we represent a minus sign in output strings.
static final java.util.Vector < String >	NaN = new java.util.Vector<String>( java.util.Arrays.asList( "N", "a", "N" ) )
	This is how we represent a NaN (not a number) in output strings.
static final java.util.Vector < String >	infinity = new java.util.Vector<String>( java.util.Arrays.asList( "∞" ) )
	This is how we represent the number infinity in output strings.
static final java.util.Vector < String >	minusInfinity = new java.util.Vector<String>( java.util.Arrays.asList( "−", "∞" ) )
	This is how we represent the number negative infinity in output strings.
static final String	startHTML = "<html>"
	This is how we represent the start of HTML in output strings.
static final String	endHTML = "</html>"
	This is how we represent the end of HTML in output strings.
static final java.util.Vector < String >	imPrefix = new java.util.Vector<String>( java.util.Arrays.asList( "i" ) )
	This is how we represent the number i (square root of negative 1) in output strings.
static final java.util.Vector < String >	argumentPrefix = new java.util.Vector<String>( java.util.Arrays.asList( "e" ) )
	This is how we represent the number e (used for natural logarithms) in output strings.
static final java.util.Vector < String >	plus = new java.util.Vector<String>( java.util.Arrays.asList( "+" ) )
	This is how we represent a plus sign in output strings.
Private Member Functions
boolean	roundUp ()
	The recursive rounding function.
HTMLStringRepresentation	standard ()
	Produce a string representing the number without using scientific notation.
void	reset ()
	Use this function whenever you change base or notation.
void	setupDec ()
	This method handles setting up decimals.
void	setupHex ()
	This method handles setting up hexadecimals.
void	setupOct ()
	This method handles setting up octals.
void	setupBin ()
	This method handles setting up binary numbers.
int	maxPrecision ()
	Numbers are stored internally in IEEE-754 format.
Static Private Member Functions
static char	getDigit (int d)
	We need to know how to represent integers up to 15 as char.
static int	getInt (char c)
	This is effectively the reverse of getDigit().
Private Attributes
final double	number
	Keep a copy of the double this object represents.
Base	base
	The current Base.
Notation	notation
	The current Notation.
int	precision
	The current Precision.
java.util.Vector< Integer >	digits
	Representation of significand digits as integers in correct base.
long	exponent
	exponent

Detailed Description

Author:: J. D. Lamb

Version:

Revision:: 1.13

Constructor & Destructor Documentation

jscicalc.complex.DoubleFormat.DoubleFormat	(	double	number,
		Base	base
	)

Constructor.

Parameters:

	number	The number to format
	base	The base

References jscicalc.complex.DoubleFormat.maxPrecision(), jscicalc.complex.DoubleFormat.notation, and jscicalc.complex.DoubleFormat.setPrecision().

Referenced by jscicalc.complex.DoubleFormat.main().

Member Function Documentation

static int jscicalc.complex.DoubleFormat.baseInt ( Base base ) [static]

This is used during rounding.

If baseInt is rounded up it must be rounded to 10 in the Base. This implies a carry operation. Others are rounded down. The returned values are 1, 7, 9 and F for Base.BINARY, Base.OCTAL, Base.DECIMAL and Base.HEXADECIMAL.

Parameters:

base

A Base to work with

Returns:: The greatest digit in the base

Referenced by jscicalc.complex.DoubleFormat.roundUp().

double jscicalc.complex.DoubleFormat.getAbsNumber ( )

Get method for finding the absolute value of the number stored in this object.

References jscicalc.complex.DoubleFormat.number.

Referenced by jscicalc.complex.Complex.tryHTMLString().

static char jscicalc.complex.DoubleFormat.getDigit ( int d ) [static, private]

We need to know how to represent integers up to 15 as char.

This function does it.

Parameters:

d

An integer (should be in range 0-15)

Returns:: The corresponding char

Referenced by jscicalc.complex.DoubleFormat.scientific(), and jscicalc.complex.DoubleFormat.standard().

String jscicalc.complex.DoubleFormat.getEString ( )

Exponents are represented as superscripts with a prefix, which may depend on the Base.

In fact, it is always a thin space, but in principle, you can change it by changing this function.

Returns:: A string to represent the exponent.

See also:: getEStringLength()

References jscicalc.complex.DoubleFormat.base.

Referenced by jscicalc.complex.DoubleFormat.scientific().

int jscicalc.complex.DoubleFormat.getEStringLength ( )

Exponents are represented as superscripts with a prefix, which may depend on the Base.

This function returns the nominal length of the prefix.

Returns:: A string to represent the exponent.

See also:: getEString()

References jscicalc.complex.DoubleFormat.base.

Referenced by jscicalc.complex.DoubleFormat.scientific().

static int jscicalc.complex.DoubleFormat.getInt ( char c ) [static, private]

This is effectively the reverse of getDigit().

We use it when extracting digits from BigDecimal.toString().

Parameters:

c

A char corresponding to a digit

Returns:: The corresponding int

Referenced by jscicalc.complex.DoubleFormat.setupDec().

double jscicalc.complex.DoubleFormat.getNumber ( )

Get method for finding the number stored in this object.

References jscicalc.complex.DoubleFormat.number.

static void jscicalc.complex.DoubleFormat.main ( String[] args ) [static]

Standard test function.

Parameters:

args

Standard arguments.

References jscicalc.complex.DoubleFormat.DoubleFormat(), jscicalc.complex.DoubleFormat.representation(), jscicalc.complex.DoubleFormat.setNotation(), jscicalc.complex.DoubleFormat.setPrecision(), and jscicalc.Notation.setScientific().

int jscicalc.complex.DoubleFormat.maxPrecision ( ) [private]

Numbers are stored internally in IEEE-754 format.

The number of digits of precision available depdends on the base and this function gives that number. The returned values are 52, 17, 14 and 13 for Base.BINARY, Base.OCTAL, Base.DECIMAL and Base.HEXADECIMAL.

Returns:: The greatest available precision

References jscicalc.complex.DoubleFormat.base.

Referenced by jscicalc.complex.DoubleFormat.DoubleFormat().

static int jscicalc.complex.DoubleFormat.midDigit ( Base base ) [static]

This is used during rounding.

Numbers at least as big as midDigit are rounded up. Others are rounded down. The returned values are 1, 4, 5 and 8 for Base.BINARY, Base.OCTAL, Base.DECIMAL and Base.HEXADECIMAL.

Parameters:

base

A Base to work with

Returns:: The middle digit of the base

Referenced by jscicalc.complex.DoubleFormat.setPrecision().

HTMLStringRepresentation jscicalc.complex.DoubleFormat.representation ( )

Produce a string representing the number in current Notation and precision.

Returns:: representation of number without an exponent

Referenced by jscicalc.complex.DoubleFormat.main(), and jscicalc.complex.Complex.tryHTMLString().

void jscicalc.complex.DoubleFormat.reset ( ) [private]

Use this function whenever you change base or notation.

It also gets called when you change the precision of the output. It reconstructs the original number so that it is ready for formatting.

References jscicalc.complex.DoubleFormat.base, jscicalc.complex.DoubleFormat.digits, jscicalc.complex.DoubleFormat.exponent, jscicalc.complex.DoubleFormat.number, jscicalc.complex.DoubleFormat.setupBin(), jscicalc.complex.DoubleFormat.setupDec(), jscicalc.complex.DoubleFormat.setupHex(), and jscicalc.complex.DoubleFormat.setupOct().

Referenced by jscicalc.complex.DoubleFormat.setPrecision().

boolean jscicalc.complex.DoubleFormat.roundUp ( ) [private]

The recursive rounding function.

Do not call this directly. It gets called from setPrecision.

Returns:: false or true according as the exponent should increase or not

References jscicalc.complex.DoubleFormat.base, jscicalc.complex.DoubleFormat.baseInt(), and jscicalc.complex.DoubleFormat.digits.

Referenced by jscicalc.complex.DoubleFormat.setPrecision().

HTMLStringRepresentation jscicalc.complex.DoubleFormat.scientific ( )

Produce a string representing the number using scientific notation.

All significant digits are used; so use round() to shorten if necessary.

Returns:: representation of number with an exponent

References jscicalc.complex.DoubleFormat.base, jscicalc.complex.DoubleFormat.basePoint, jscicalc.complex.DoubleFormat.digits, jscicalc.complex.DoubleFormat.endExponent, jscicalc.complex.DoubleFormat.exponent, jscicalc.complex.DoubleFormat.getDigit(), jscicalc.complex.DoubleFormat.getEString(), jscicalc.complex.DoubleFormat.getEStringLength(), jscicalc.complex.DoubleFormat.minus, jscicalc.complex.DoubleFormat.number, and jscicalc.complex.DoubleFormat.startExponent.

Referenced by jscicalc.complex.DoubleFormat.HTMLStringRepresentation.HTMLStringRepresentation().

void jscicalc.complex.DoubleFormat.setBase ( final Base base )

Set the base.

Parameters:

base

The base

void jscicalc.complex.DoubleFormat.setNotation ( Notation notation )

Set the notation.

Use this every time you want a change of notation.

Parameters:

notation

The notation

Referenced by jscicalc.complex.DoubleFormat.main(), and jscicalc.complex.Complex.tryHTMLString().

void jscicalc.complex.DoubleFormat.setPrecision ( int precision )

Set the precision.

The precision is the maximum number of significant digits that can be displayed. Setting the precision is equivalent to resetting the number and rounding.

Parameters:

precision

The maximum number of significant digits

References jscicalc.complex.DoubleFormat.base, jscicalc.complex.DoubleFormat.digits, jscicalc.complex.DoubleFormat.exponent, jscicalc.complex.DoubleFormat.midDigit(), jscicalc.complex.DoubleFormat.reset(), and jscicalc.complex.DoubleFormat.roundUp().

Referenced by jscicalc.complex.DoubleFormat.DoubleFormat(), jscicalc.complex.DoubleFormat.main(), and jscicalc.complex.Complex.tryHTMLString().

void jscicalc.complex.DoubleFormat.setupBin ( ) [private]

This method handles setting up binary numbers.

References jscicalc.complex.DoubleFormat.BIAS, jscicalc.complex.DoubleFormat.digits, jscicalc.complex.DoubleFormat.E_MIN, jscicalc.complex.DoubleFormat.exponent, and jscicalc.complex.DoubleFormat.number.

Referenced by jscicalc.complex.DoubleFormat.reset().

void jscicalc.complex.DoubleFormat.setupDec ( ) [private]

This method handles setting up decimals.

References jscicalc.complex.DoubleFormat.digits, jscicalc.complex.DoubleFormat.exponent, jscicalc.complex.DoubleFormat.getInt(), and jscicalc.complex.DoubleFormat.number.

Referenced by jscicalc.complex.DoubleFormat.reset().

void jscicalc.complex.DoubleFormat.setupHex ( ) [private]

This method handles setting up hexadecimals.

References jscicalc.complex.DoubleFormat.BIAS, jscicalc.complex.DoubleFormat.digits, jscicalc.complex.DoubleFormat.E_MIN, jscicalc.complex.DoubleFormat.exponent, and jscicalc.complex.DoubleFormat.number.

Referenced by jscicalc.complex.DoubleFormat.reset().

void jscicalc.complex.DoubleFormat.setupOct ( ) [private]

This method handles setting up octals.

References jscicalc.complex.DoubleFormat.BIAS, jscicalc.complex.DoubleFormat.digits, jscicalc.complex.DoubleFormat.E_MIN, jscicalc.complex.DoubleFormat.exponent, and jscicalc.complex.DoubleFormat.number.

Referenced by jscicalc.complex.DoubleFormat.reset().

HTMLStringRepresentation jscicalc.complex.DoubleFormat.standard ( ) [private]

Produce a string representing the number without using scientific notation.

This can produce very long strings.

Returns:: representation of number without an exponent

References jscicalc.complex.DoubleFormat.basePoint, jscicalc.complex.DoubleFormat.digits, jscicalc.complex.DoubleFormat.exponent, jscicalc.complex.DoubleFormat.getDigit(), jscicalc.complex.DoubleFormat.minus, and jscicalc.complex.DoubleFormat.number.

Referenced by jscicalc.complex.DoubleFormat.HTMLStringRepresentation.HTMLStringRepresentation().

Member Data Documentation

final java.util.Vector<String> jscicalc.complex.DoubleFormat.argumentPrefix = new java.util.Vector<String>( java.util.Arrays.asList( "e" ) ) [static]

This is how we represent the number e (used for natural logarithms) in output strings.

In principle you can change this.

Base jscicalc.complex.DoubleFormat.base [private]

The current Base.

Referenced by jscicalc.complex.DoubleFormat.getEString(), jscicalc.complex.DoubleFormat.getEStringLength(), jscicalc.complex.DoubleFormat.maxPrecision(), jscicalc.complex.DoubleFormat.reset(), jscicalc.complex.DoubleFormat.roundUp(), jscicalc.complex.DoubleFormat.scientific(), and jscicalc.complex.DoubleFormat.setPrecision().

final java.util.Vector<String> jscicalc.complex.DoubleFormat.basePoint = new java.util.Vector<String>( java.util.Arrays.asList( "." ) ) [static]

This is how we represent a base point in output strings.

In principle you can change this.

Referenced by jscicalc.complex.DoubleFormat.scientific(), and jscicalc.complex.DoubleFormat.standard().

final long jscicalc.complex.DoubleFormat.BIAS = 1023 [static]

Standard constant for IEEE 754 doubles.

Referenced by jscicalc.complex.DoubleFormat.setupBin(), jscicalc.complex.DoubleFormat.setupHex(), and jscicalc.complex.DoubleFormat.setupOct().

java.util.Vector<Integer> jscicalc.complex.DoubleFormat.digits [private]

Representation of significand digits as integers in correct base.

Referenced by jscicalc.complex.DoubleFormat.reset(), jscicalc.complex.DoubleFormat.roundUp(), jscicalc.complex.DoubleFormat.scientific(), jscicalc.complex.DoubleFormat.setPrecision(), jscicalc.complex.DoubleFormat.setupBin(), jscicalc.complex.DoubleFormat.setupDec(), jscicalc.complex.DoubleFormat.setupHex(), jscicalc.complex.DoubleFormat.setupOct(), and jscicalc.complex.DoubleFormat.standard().

final long jscicalc.complex.DoubleFormat.E_MAX = 1023 [static]

Standard constant for IEEE 754 doubles.

final long jscicalc.complex.DoubleFormat.E_MIN = -1022 [static]

Standard constant for IEEE 754 doubles.

Referenced by jscicalc.complex.DoubleFormat.setupBin(), jscicalc.complex.DoubleFormat.setupHex(), and jscicalc.complex.DoubleFormat.setupOct().

final String jscicalc.complex.DoubleFormat.endExponent = "</sup>" [static]

This is how we represent the end of an exponent in output strings.

Referenced by jscicalc.complex.DoubleFormat.scientific().

final String jscicalc.complex.DoubleFormat.endHTML = "</html>" [static]

This is how we represent the end of HTML in output strings.

long jscicalc.complex.DoubleFormat.exponent [private]

exponent

Referenced by jscicalc.complex.DoubleFormat.reset(), jscicalc.complex.DoubleFormat.scientific(), jscicalc.complex.DoubleFormat.setPrecision(), jscicalc.complex.DoubleFormat.setupBin(), jscicalc.complex.DoubleFormat.setupDec(), jscicalc.complex.DoubleFormat.setupHex(), jscicalc.complex.DoubleFormat.setupOct(), and jscicalc.complex.DoubleFormat.standard().

final java.util.Vector<String> jscicalc.complex.DoubleFormat.imPrefix = new java.util.Vector<String>( java.util.Arrays.asList( "i" ) ) [static]

This is how we represent the number i (square root of negative 1) in output strings.

In principle you can change this.

final java.util.Vector<String> jscicalc.complex.DoubleFormat.infinity = new java.util.Vector<String>( java.util.Arrays.asList( "∞" ) ) [static]

This is how we represent the number infinity in output strings.

In principle you can change this.

Referenced by jscicalc.complex.DoubleFormat.HTMLStringRepresentation.HTMLStringRepresentation().

final java.util.Vector<String> jscicalc.complex.DoubleFormat.minus = new java.util.Vector<String>( java.util.Arrays.asList( "−" ) ) [static]

This is how we represent a minus sign in output strings.

In principle you can change this.

Referenced by jscicalc.complex.DoubleFormat.HTMLStringRepresentation.isMinusOne(), jscicalc.complex.DoubleFormat.scientific(), and jscicalc.complex.DoubleFormat.standard().

final java.util.Vector<String> jscicalc.complex.DoubleFormat.minusInfinity = new java.util.Vector<String>( java.util.Arrays.asList( "−", "∞" ) ) [static]

This is how we represent the number negative infinity in output strings.

In principle you can change this.

Referenced by jscicalc.complex.DoubleFormat.HTMLStringRepresentation.HTMLStringRepresentation().

final java.util.Vector<String> jscicalc.complex.DoubleFormat.NaN = new java.util.Vector<String>( java.util.Arrays.asList( "N", "a", "N" ) ) [static]

This is how we represent a NaN (not a number) in output strings.

In principle you can change this.

Notation jscicalc.complex.DoubleFormat.notation [private]

The current Notation.

Referenced by jscicalc.complex.DoubleFormat.DoubleFormat(), and jscicalc.complex.DoubleFormat.HTMLStringRepresentation.HTMLStringRepresentation().

final HTMLStringRepresentation jscicalc.complex.DoubleFormat.NullRepresentation

Initial value:

        new HTMLStringRepresentation( new jscicalc.StringArray(), 0 )

This is used to assign HTMLStringRepresentation objects to a null value.

It allows us to make a null assignment that can still be used.

Referenced by jscicalc.complex.Complex.tryHTMLString().

final double jscicalc.complex.DoubleFormat.number [private]

Keep a copy of the double this object represents.

Referenced by jscicalc.complex.DoubleFormat.getAbsNumber(), jscicalc.complex.DoubleFormat.getNumber(), jscicalc.complex.DoubleFormat.HTMLStringRepresentation.HTMLStringRepresentation(), jscicalc.complex.DoubleFormat.reset(), jscicalc.complex.DoubleFormat.scientific(), jscicalc.complex.DoubleFormat.setupBin(), jscicalc.complex.DoubleFormat.setupDec(), jscicalc.complex.DoubleFormat.setupHex(), jscicalc.complex.DoubleFormat.setupOct(), and jscicalc.complex.DoubleFormat.standard().

final java.util.Vector<String> jscicalc.complex.DoubleFormat.plus = new java.util.Vector<String>( java.util.Arrays.asList( "+" ) ) [static]

This is how we represent a plus sign in output strings.

In principle you can change this.

int jscicalc.complex.DoubleFormat.precision [private]

The current Precision.

final String jscicalc.complex.DoubleFormat.startExponent = "<sup style=\"font-size:60%;\">" [static]

This is how we represent the start of an exponent in output strings.

Referenced by jscicalc.complex.DoubleFormat.scientific().

final String jscicalc.complex.DoubleFormat.startHTML = "<html>" [static]

This is how we represent the start of HTML in output strings.

The documentation for this class was generated from the following file:

DoubleFormat.java

jscicalc.complex.DoubleFormat Class Reference

Classes

Public Member Functions

Static Public Member Functions

Public Attributes

Static Public Attributes

Private Member Functions

Static Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
