Abstract base class for Objective and Constraint. More...

#include <ModelFunction.hpp>

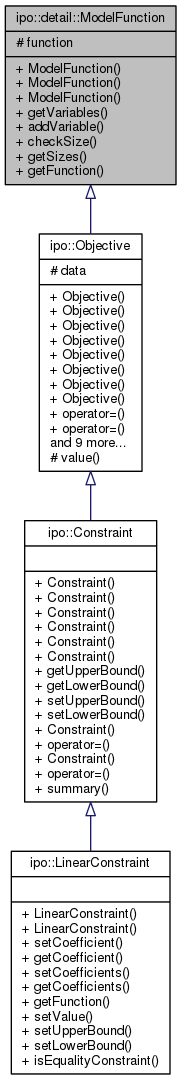

Inheritance diagram for ipo::detail::ModelFunction:

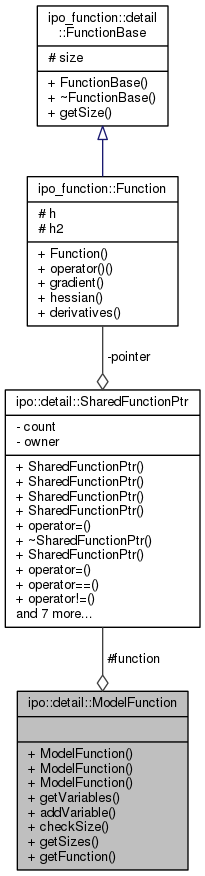

Collaboration diagram for ipo::detail::ModelFunction:

Public Member Functions
	ModelFunction (SharedFunctionPtr function)
	Use this constructor to construct from a SharedFunctionPtr object. More...

	ModelFunction (ipo_function::Function *function)
	Use this constructor to construct from a pointer to a ipo_function::Function object. More...

	ModelFunction (ipo_function::Function &function)
	Use this constructor to construct from a ipo_function::Function object by reference. More...

virtual ipo::Array &	getVariables ()=0
	Get variables used by Objective or Constraint function. More...

virtual void	addVariable (ipo::Variable &variable)
	Add a Variable to the end of the Array of variables. More...

bool	checkSize () const
	Check size of vector for function arguments matches number of variables supplied. More...

std::tuple< size_t, size_t >	getSizes () const
	Get size of vector for function arguments and number of variables supplied. More...

virtual ::ipo_function::Function *	getFunction ()
	Get function. More...

Protected Attributes
SharedFunctionPtr	function
	The objective or constraint function. More...

Detailed Description

Abstract base class for Objective and Constraint.

Definition at line 32 of file ModelFunction.hpp.

Constructor & Destructor Documentation

ModelFunction::ModelFunction ( SharedFunctionPtr function )

Use this constructor to construct from a SharedFunctionPtr object.

Parameters

function A SharedFunctionPtr object

Definition at line 28 of file ModelFunction.cc.

ModelFunction::ModelFunction ( ipo_function::Function * function )

Use this constructor to construct from a pointer to a ipo_function::Function object.

The Function object should be constructed using new and should not be deleted explicitly.

Parameters

function A pointer to an object of a subclass of ipo_function::Function

Definition at line 31 of file ModelFunction.cc.

ModelFunction::ModelFunction ( ipo_function::Function & function )

Use this constructor to construct from a ipo_function::Function object by reference.

The Function object must remain in scope for the Objective object to be useable.

Parameters

function An object of a subclass of ipo_function::Function

Definition at line 34 of file ModelFunction.cc.

Member Function Documentation

void ModelFunction::addVariable ( ipo::Variable & variable )

virtual

Add a Variable to the end of the Array of variables.

Parameters

variable The Variable to add

Exceptions

IPOException if Model objects do not match

Reimplemented in ipo::Objective.

Definition at line 45 of file ModelFunction.cc.

References getVariables(), ipo::Array::push_back(), and RETHROW.

bool ModelFunction::checkSize ( ) const

Check size of vector for function arguments matches number of variables supplied.

If the function vector size is not specified, return true.

Returns: true or false according as size of vector for function arguments matches number of variables supplied or not

See also: Model::checkSize()

Definition at line 38 of file ModelFunction.cc.

References getVariables(), and ipo::Array::size().

Referenced by ipo::Model::checkSize().

virtual::ipo_function::Function* ipo::detail::ModelFunction::getFunction ( )

inline

Get function.

Returns: function

Definition at line 81 of file ModelFunction.hpp.

Referenced by ipo::detail::BarrierFunction::initialiseGradientFromObjective(), ipo::detail::BarrierFunction::initialiseHessianFromObjective(), ipo::detail::BarrierFunction::initialiseResultFromObjective(), and ipo::detail::PhaseIModel::setIndices().

std::tuple< size_t, size_t > ModelFunction::getSizes ( ) const

Get size of vector for function arguments and number of variables supplied.

Returns: size of vector for function arguments and number of variables supplied.

Definition at line 54 of file ModelFunction.cc.

References getVariables(), and ipo::Array::size().

Referenced by ipo::Model::testSizes().

virtual ipo::Array& ipo::detail::ModelFunction::getVariables ( )

pure virtual

Get variables used by Objective or Constraint function.

Returns: variables The variables used by Constraint function

Implemented in ipo::Objective.

Referenced by addVariable(), checkSize(), and getSizes().

Member Data Documentation

SharedFunctionPtr ipo::detail::ModelFunction::function

protected

The objective or constraint function.

Definition at line 86 of file ModelFunction.hpp.

Referenced by ipo::Objective::operator=(), and ipo::Constraint::operator=().

The documentation for this class was generated from the following files:
