ipo::Model::Subvector Class Reference

Abstract base class for subvector classes. More...

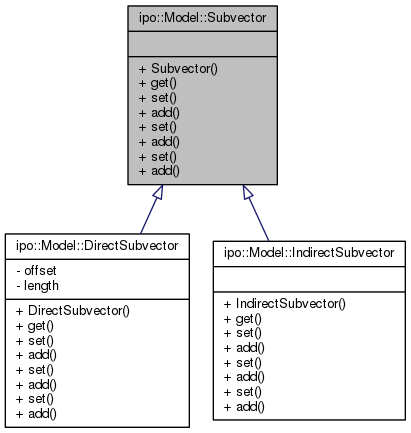

Inheritance diagram for ipo::Model::Subvector:

Collaboration diagram for ipo::Model::Subvector:

Public Member Functions
	Subvector ()
	Default constructor. More...
virtual gsl::vector const	get (gsl::vector const &vector) const =0
	Get a subvector of vector. More...
virtual void	set (gsl::vector &vector, gsl::vector const &subvector, double const scale=1.0) const =0
	Set vector from a subvector. More...
virtual void	add (gsl::vector &vector, gsl::vector const &subvector, double const scale=1.0) const =0
	Add to vector from a subvector. More...
virtual void	set (gsl::matrix &matrix, gsl::matrix const &submatrix, double const scale=1.0) const =0
	Set matrix from a submatrix. More...
virtual void	add (gsl::matrix &matrix, gsl::matrix const &submatrix, double const scale=1.0) const =0
	Add to matrix from a submatrix Computes matrix += scale * [expanded] submatrix. More...
virtual void	set (gsl::matrix &matrix, gsl::vector const &vector, double const scale=1.0) const =0
	Set matrix from a vector. More...
virtual void	add (gsl::matrix &matrix, gsl::vector const &vector, double const scale=1.0) const =0
	Add to matrix from a vector Computes matrix += scale * [expanded] submatrix * [expanded] vector transpose. More...

Detailed Description

Abstract base class for subvector classes.

These are used internally to allow the the interior point algorithm to run faster if all the constraints use either precisely one of the objective variables or all of them in the same order.

Definition at line 408 of file Model.hpp.

Constructor & Destructor Documentation

ipo::Model::Subvector::Subvector ( )

inline

Default constructor.

Definition at line 413 of file Model.hpp.

Member Function Documentation

virtual void ipo::Model::Subvector::add ( gsl::vector &  vector, gsl::vector const &  subvector, double const  scale = 1.0  ) const

pure virtual

Add to vector from a subvector.

Parameters

vector	The vector
subvector	The subvector
scale	A scaling factor: computes vector += scale * [expanded] subvector

Implemented in ipo::Model::IndirectSubvector, and ipo::Model::DirectSubvector.

virtual void ipo::Model::Subvector::add ( gsl::matrix &  matrix, gsl::matrix const &  submatrix, double const  scale = 1.0  ) const

pure virtual

Add to matrix from a submatrix Computes matrix += scale * [expanded] submatrix.

Parameters

matrix	The matrix
submatrix	The submatrix
scale	A scaling factor

Implemented in ipo::Model::IndirectSubvector, and ipo::Model::DirectSubvector.

virtual void ipo::Model::Subvector::add ( gsl::matrix &  matrix, gsl::vector const &  vector, double const  scale = 1.0  ) const

pure virtual

Add to matrix from a vector Computes matrix += scale * [expanded] submatrix * [expanded] vector transpose.

Parameters

matrix	The matrix
vector	The vector
scale	A scaling factor

Implemented in ipo::Model::IndirectSubvector, and ipo::Model::DirectSubvector.

virtual gsl::vector const ipo::Model::Subvector::get ( gsl::vector const &  vector ) const

pure virtual

Get a subvector of vector.

Parameters

vector

The vector

Returns

a subvector of vector

Implemented in ipo::Model::IndirectSubvector, and ipo::Model::DirectSubvector.

virtual void ipo::Model::Subvector::set ( gsl::vector &  vector, gsl::vector const &  subvector, double const  scale = 1.0  ) const

pure virtual

Set vector from a subvector.

Parameters

vector	The vector
subvector	The subvector
scale	A scaling factor: computes vector += scale * [expanded] subvector

Implemented in ipo::Model::IndirectSubvector, and ipo::Model::DirectSubvector.

virtual void ipo::Model::Subvector::set ( gsl::matrix &  matrix, gsl::matrix const &  submatrix, double const  scale = 1.0  ) const

pure virtual

Set matrix from a submatrix.

Parameters

matrix	The matrix
submatrix	The submatrix
scale	A scaling factor: computes matrix += scale * [expanded] submatrix

Implemented in ipo::Model::IndirectSubvector, and ipo::Model::DirectSubvector.

virtual void ipo::Model::Subvector::set ( gsl::matrix &  matrix, gsl::vector const &  vector, double const  scale = 1.0  ) const

pure virtual

Set matrix from a vector.

Parameters

matrix	The matrix
vector	The vector
scale	A scaling factor: computes matrix += scale * [expanded] vector * [expanded] vector transpose

Implemented in ipo::Model::IndirectSubvector, and ipo::Model::DirectSubvector.

---

The documentation for this class was generated from the following file:

• Model.hpp
